Setup, RBAC and TruConnect

Initial station setup sequence

  1. Open setup modules and configure axle templates.
  2. Set tolerance values and legal/acts compliance parameters.
  3. Configure weighing metadata and system defaults.
  4. Save and verify values are active.

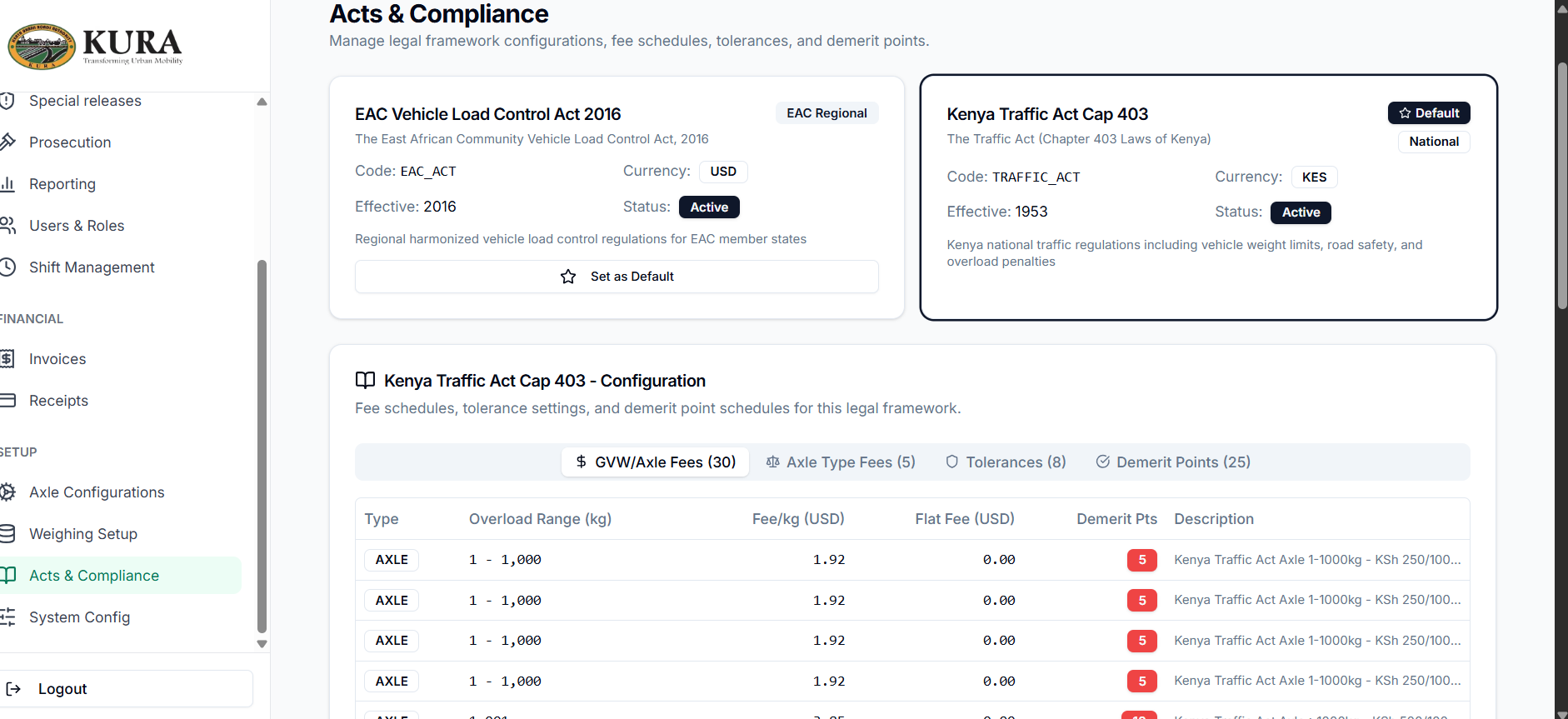

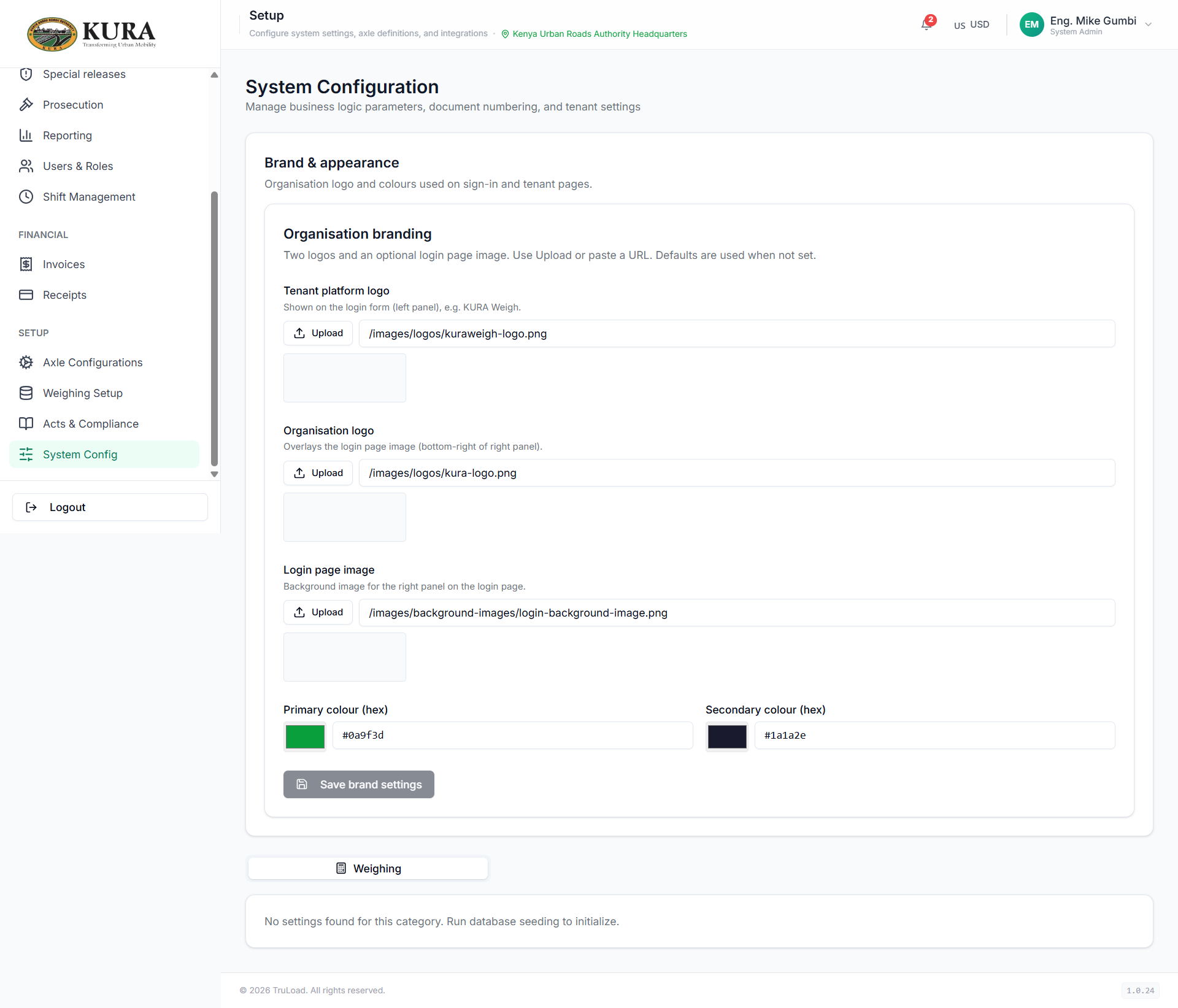

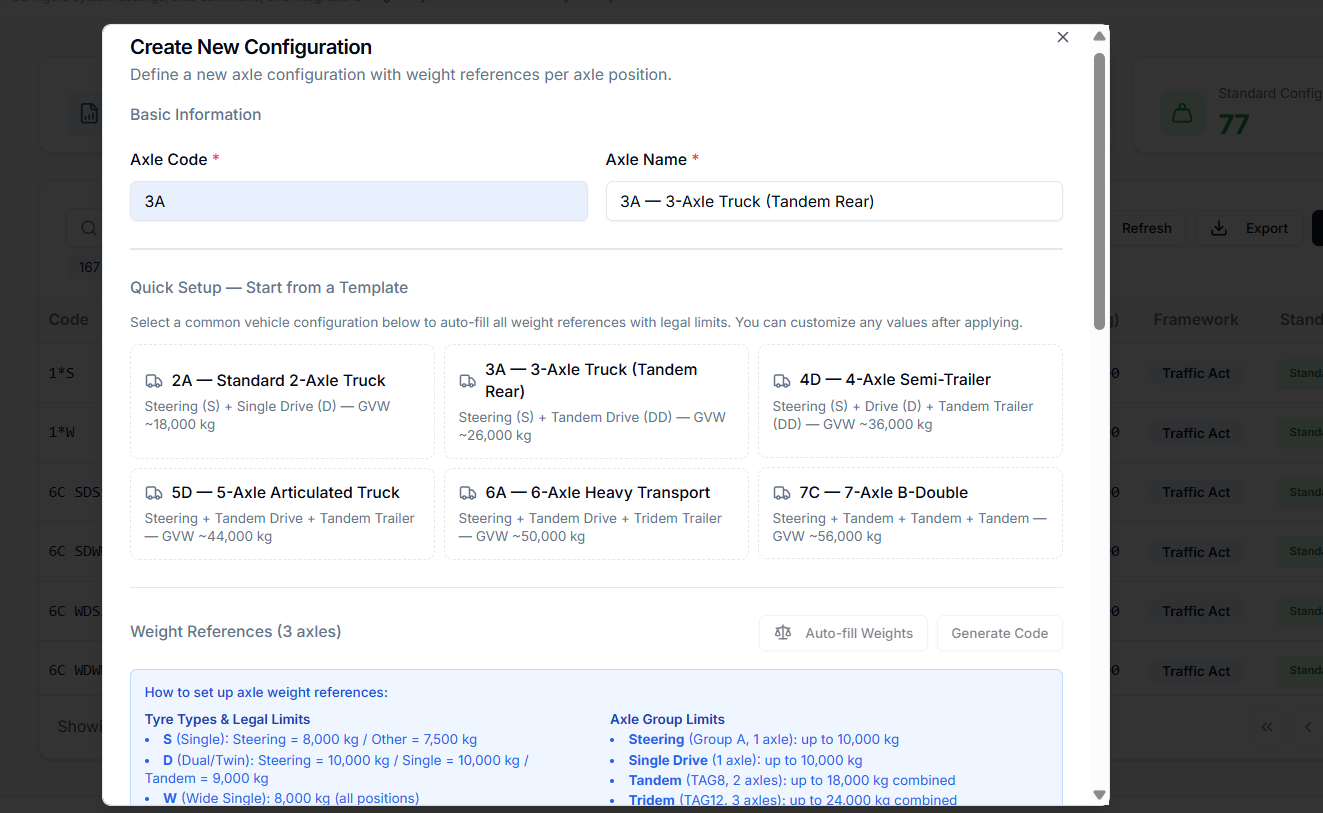

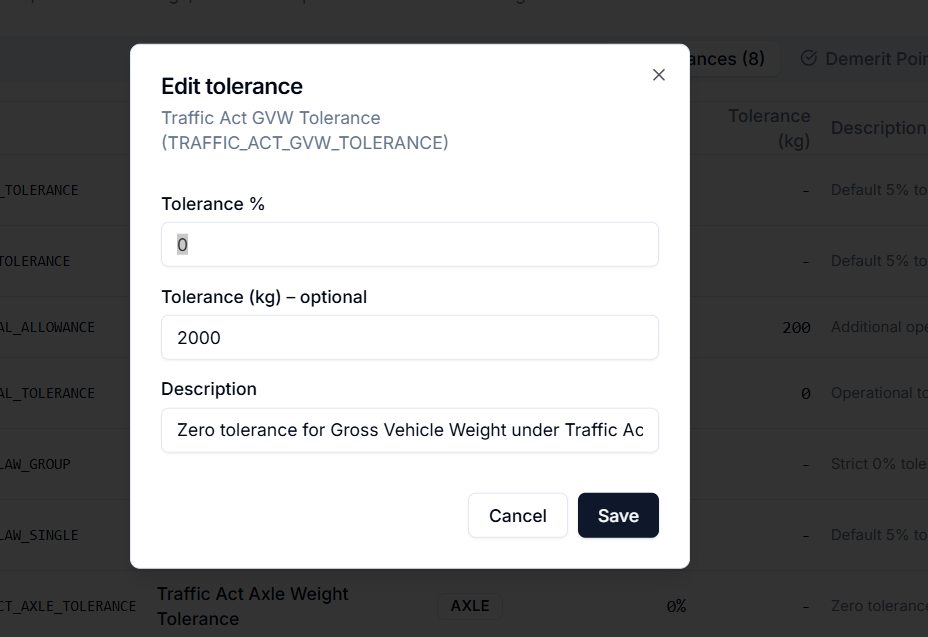

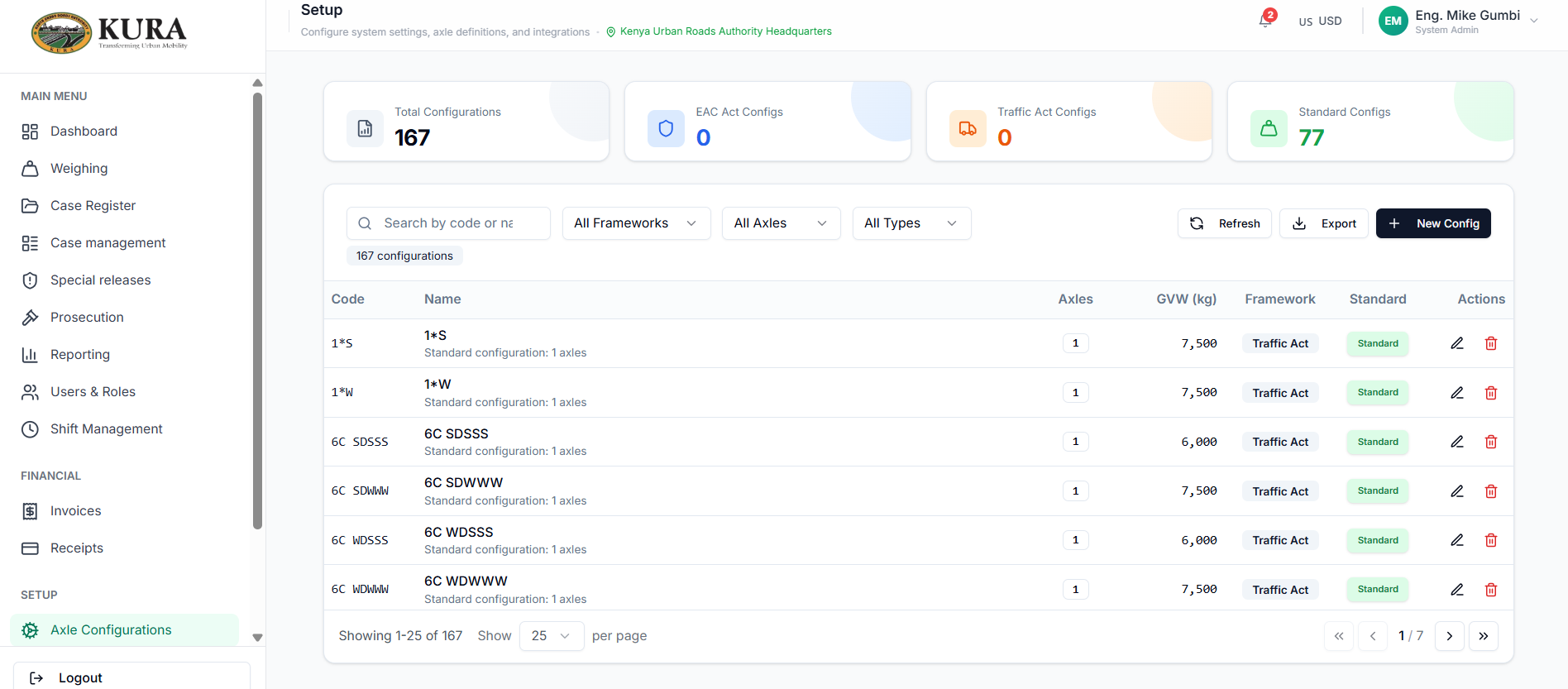

Axle configs Add axle config Tolerance setup Acts and compliance setup System config

User, role, and shift management (RBAC)

  1. Open accounts management.
  2. Create users with correct station/department mapping.
  3. Assign role and permissions.
  4. Create shift rotations.
  5. Assign users to shifts.
  6. Verify login/module visibility from assigned role profile.

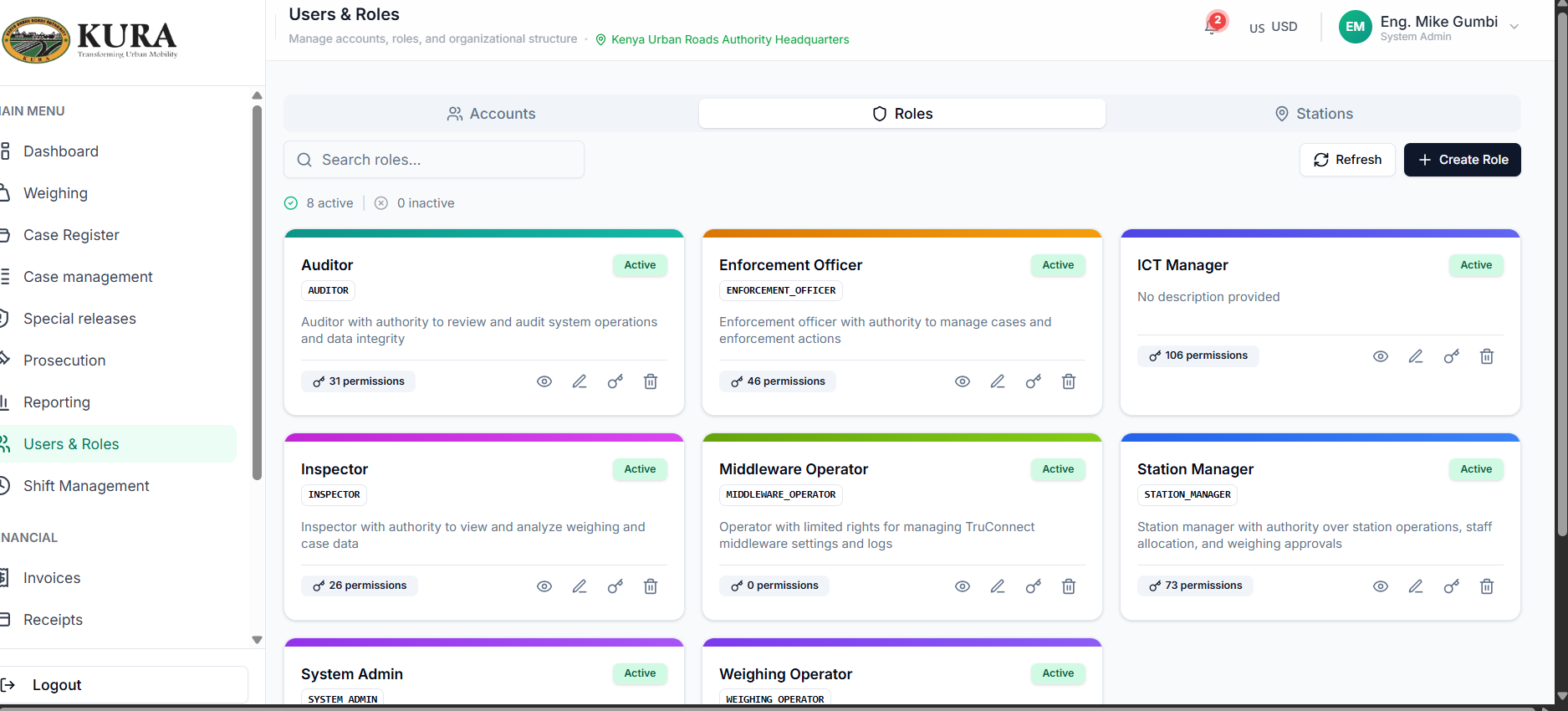

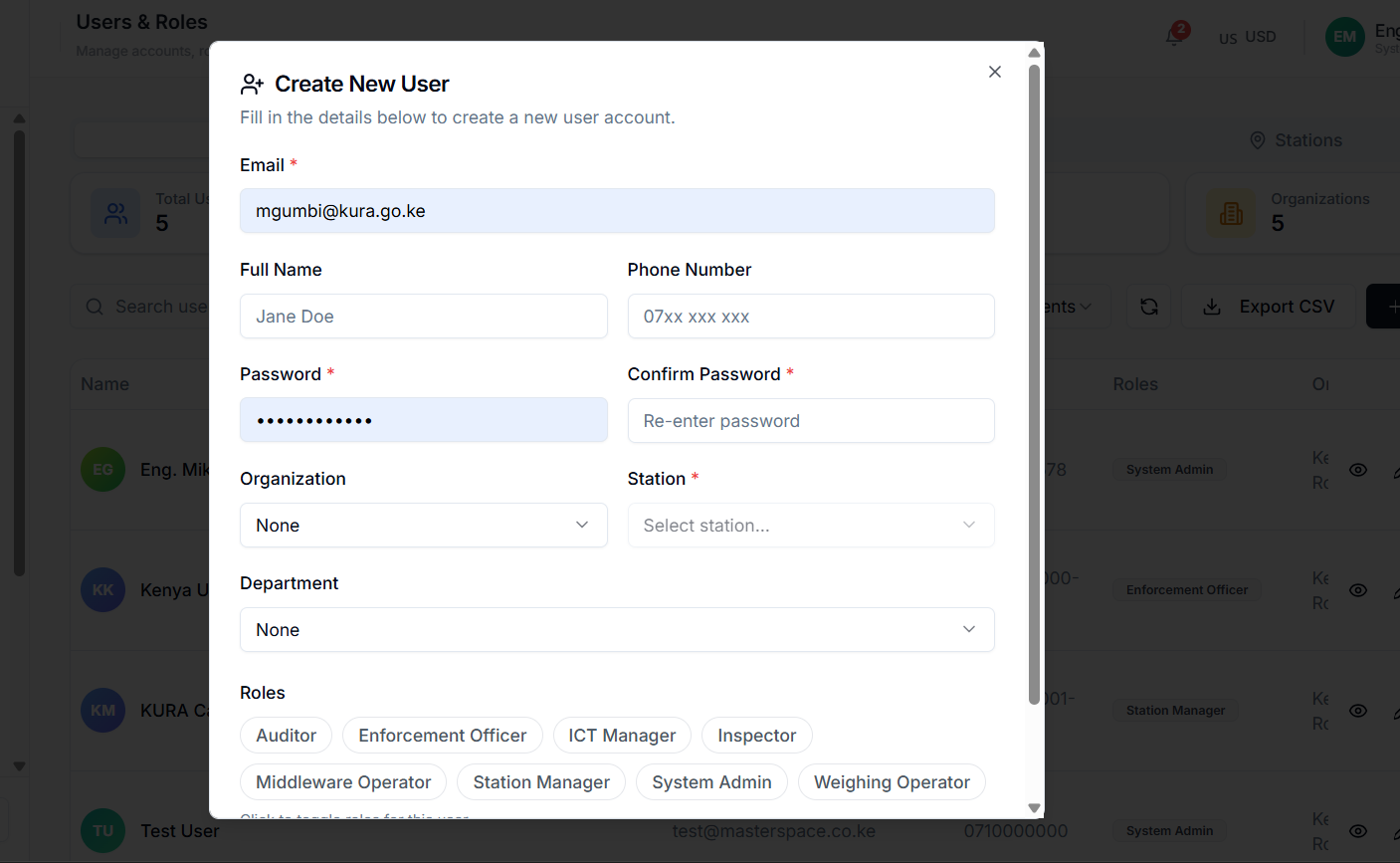

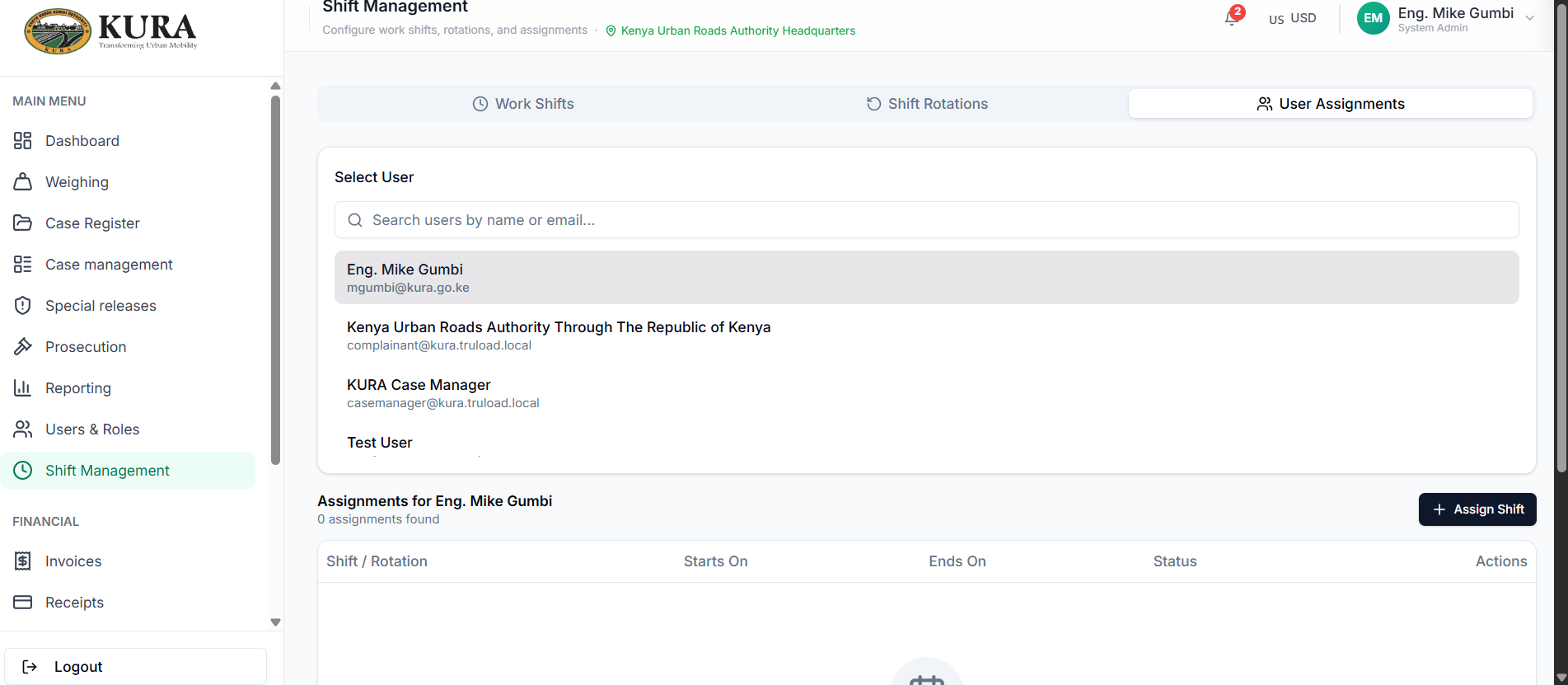

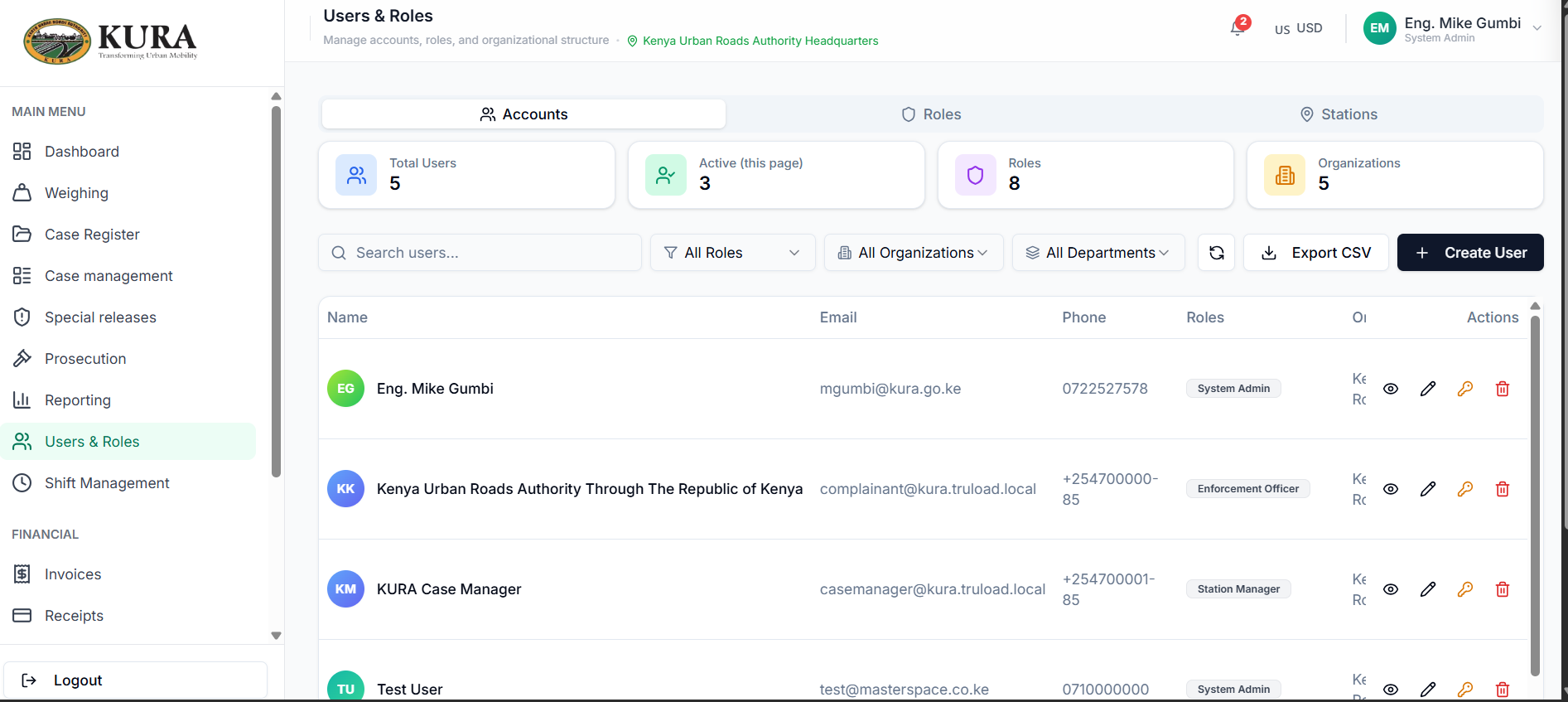

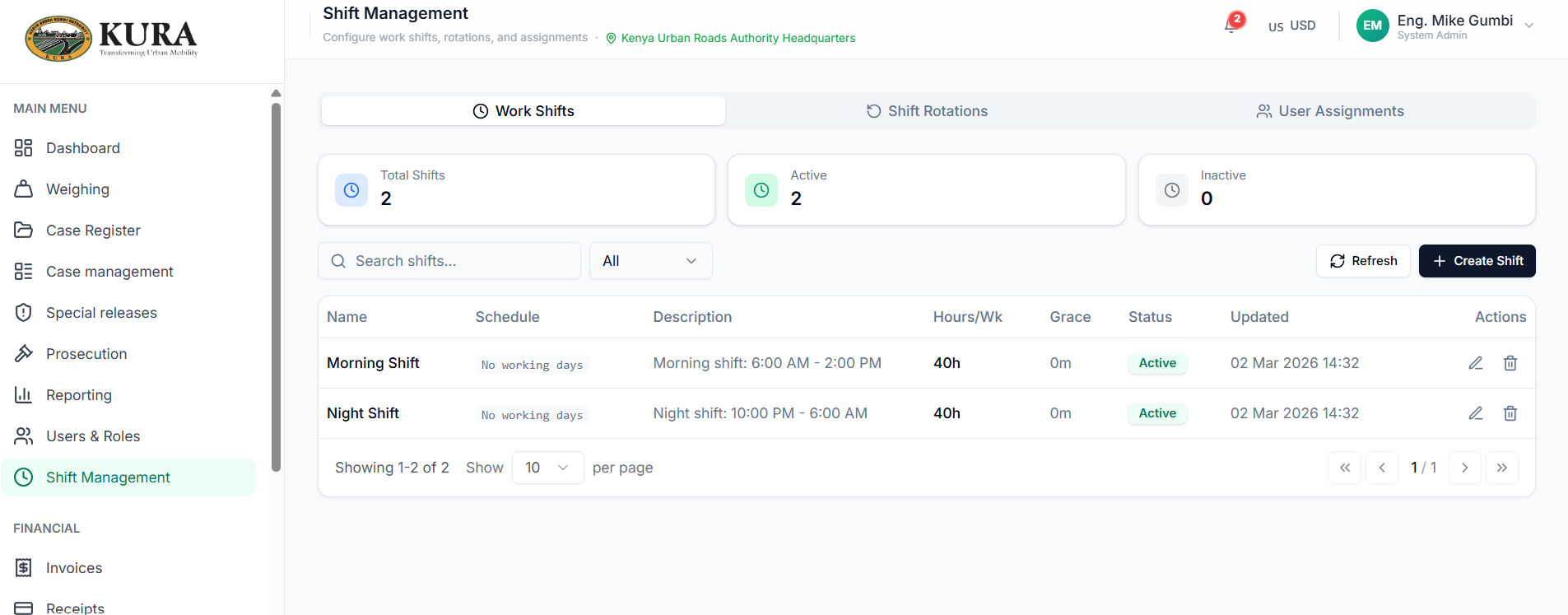

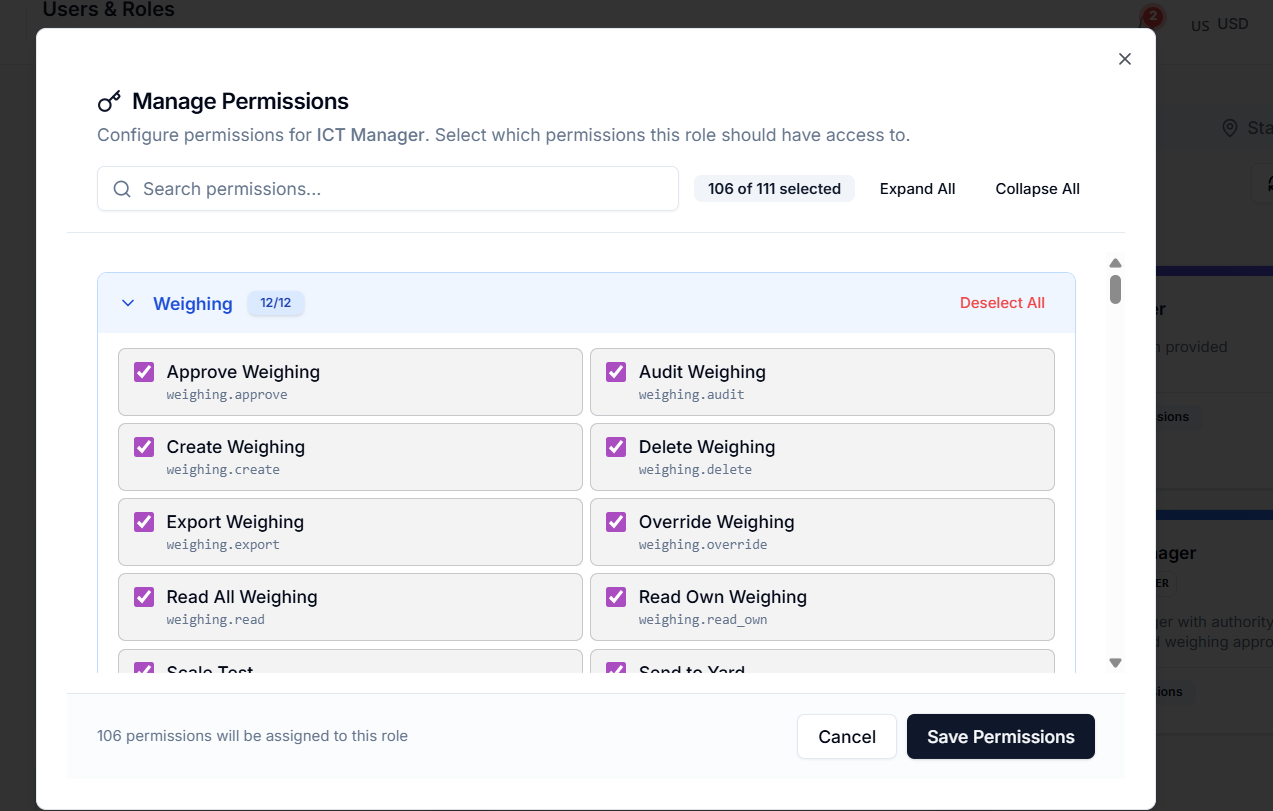

Accounts page Add new user Manage roles Manage permissions Shift management Assign user shifts

TruConnect configuration and verification

  1. Install and launch TruConnect on the workstation attached to scale hardware.
  2. Configure general settings and account credentials.
  3. Configure input source and output channels.
  4. Configure auto-weight and threshold behavior.
  5. Validate live data feed to frontend weighing screen.
  6. Confirm RDU and device mappings where used.

TruConnect mobile view TruConnect multideck view General settings Input sources Auto-weight config Threshold config

Weighing metadata — vehicle makes and fleet

Vehicle makes (manufacturers) and the vehicle fleet are managed under Setup → Weighing Metadata.

Vehicle Makes tab

  • The dropdown lists only active makes. If a make appears missing (e.g. HOWO, MAZDA, TOYOTA), it may have been soft-deleted during a data-cleanup run.
  • Attempting to add a make whose code already exists (even if previously deleted) will restore the existing record rather than creating a duplicate. The restored make becomes active immediately.
  • If you enter a code that conflicts with a currently active make, a conflict message is shown and no record is created.

Vehicles (Fleet) tab

  • The vehicle list loads immediately when you open the tab — no search term required.
  • Type into the search box to filter by plate number, chassis number, or engine number. Plate searches are space-normalised: KCX091X and KCX 091X match the same vehicle.

Post-setup validation checklist

  • Weighing module receives live scale values.
  • Required modules are visible for each role.
  • Role restrictions are enforced correctly.
  • Shift assignments reflect in operator routing and accountability.
